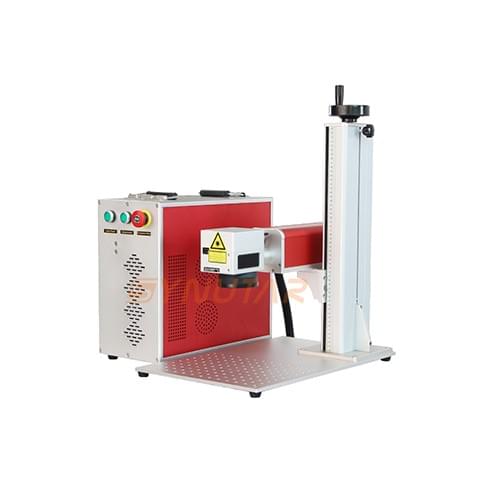

Portable Fiber Laser Marker

Portable Fiber Laser Marker

1. Portable and Easy to Move
2. Can be Shipped by Express/Air, Save Shipping Time and Cost
3. Fast Marking Speed
4. Not Easy to Fall Off
5. Long Lifetime 100,000hours
6. Marking All the Metals and Some Plastic
7. Laser Power: 20W/30W/50W (Optional)

More Details

Features:

1. The photoelectric conversion rate is up to 40%~50%, environmental protection and energy saving.

2. High beam quality, suitable for precise marking.

3. The marking speed is fast, 5-10 times faster than the traditional marking machine.

4. Small size, suitable for supporting automation equipment.

5. No consumables, maintenance-free, with long lifespan up to 100,000 hours.



 Applicable industries:

Electronic components, IC, medical equipment, hardware appliances, molds, sanitary ware, kitchenware, knives, glasses, clocks, auto parts, luggage parts, jewelry, etc.



Applicable materials:

Any metal and some non-metal materials, engineering plastics, electroplating, coating, ABS, epoxy resin, coating spray materials, etc.



Technical parameters:

Model

SY-F20/30/50/60/70/100/120

Laser Power

20W/30W/50W/60W/70W/100W/120W

Laser Typ

Fiber laser generator: Pulse width is not adjustable/MOPA: pulse width is adjustable(Optional)

Laser Wavelength

1064nm

Laser Frequency

20Khz-100Khz / MOPA:1~4000KHz

Beam Quality

<1.5 M²

Marking Area

70mmx70mm/110mmx110mm/150X150mm

175X175mm/200mmX200mm/220mmx220mm/250mmx250mm/300mmx300mm

(Optional)

Marking Speed

≤8000mm/s

Supported Format

BMP,JPG,JPEG, TIF, GIF,PLT,PNG, AI, DXF, SVG

Min. Character size

0.15mm

Min. Linear Width

0.01mm

Repeat accuracy

±0.02mm

Cooling Mode

Air cooling

Power Consumption

<500W

Power Voltage

220V±10%/50HZ/5A

Sample photos
